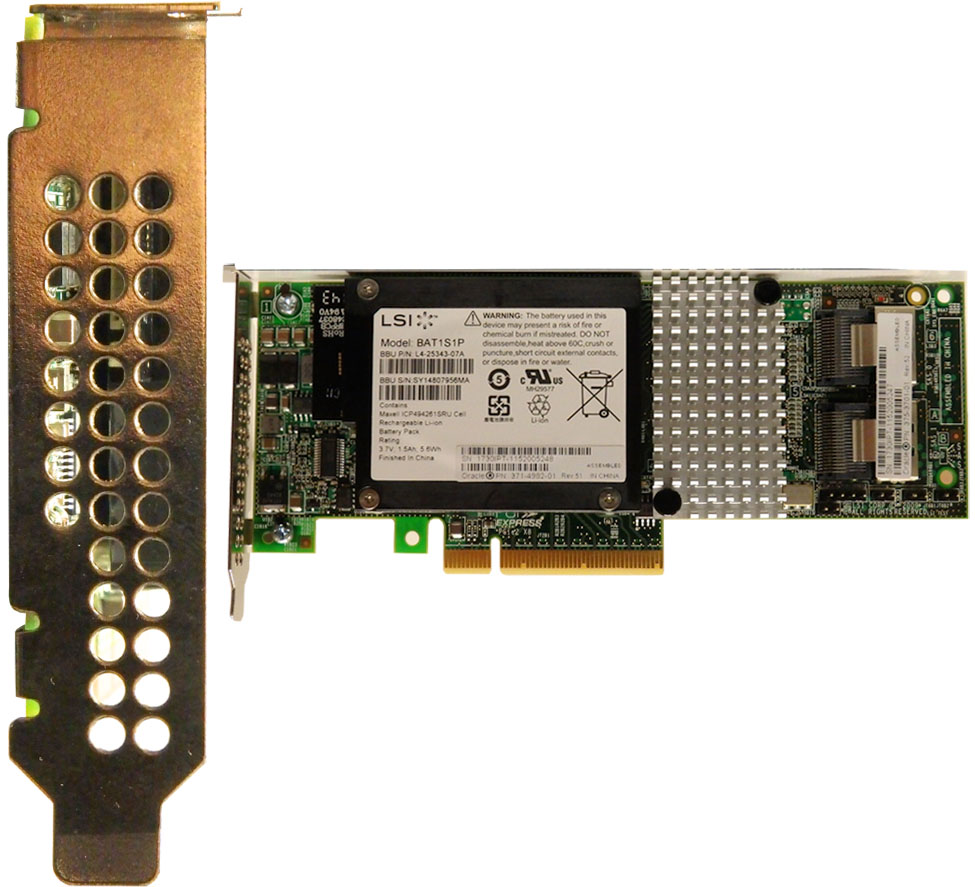

Oracle 8-Port 6Gbps SAS-2 RAID PCI Express HBA.
Sun Part Number 7047503.
Original Sun Product.
8-Port 6Gbps SAS-2 RAID HBA| Servers | Sun Blade X3-2B, X4-2B
Sun Fire X4170 M2, X4170 M3
Sun Fire X4270 M2, X4270 M3
Sun Fire X4470, X4470 M2
Sun Fire X4800, X4800 M2
Sun Server X2-4, X2-8, X3-2, X3-2L, X4-2, X4-2L, X4-4, X4-8
SPARC Enterprise T5120, T5220
SPARC T3-1, T3-2, T4-1, T4-2
Oracle Exalytics In-Memory Machine X2-4, X3-4, X4-4
Oracle Network Applications Platform
Oracle Virtual Compute Appliance X3-2, X4-2
| | Telco Systems | Netra T5440
Netra X6270 M3, X4270 M3, X4270
Netra Server X3-2
Netra Blade X3-2B |
7047503
LSI L3-25239-xx
B4 Liberator ASIC
x8 PCI Express
Battery 7050794
August 2012
Notes- The minimum Solaris OS is Solaris 10 10/09 per 820-7885-11 of August 2010.
- The recommended minimum Solaris OS is Solaris 10 01/13 per E22410-05 of September 2013.
- For the latest recommended OS support levels, see the installation guide.
- The 8-Port SAS HBA was released in August 2009.
- BBU08 allows the operational range of the HBA to increase from 45C to 55C.
- Only install this HBA in X4470 and X4470 M2 Slot-4.
- X4470 ambient temperature with this HBA installed is 5° to 32° Centigrade.
- X4470 M2 ambient temperature with this HBA installed is 5° to 32° Centigrade.
- PCI Identifiers are Vendor ID 0x1000, Device ID 0x0079, and Subsystem ID 0x9263.
- Vital Product Data VPD=PN is 375-3701 for both part numbers.
Sun original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
|
