Memory Riser

Servers	Sun Server X2-4 SPARC T3-2, T4-2 Oracle Exalytics In-Memory Machine X2-4, X3-4
Disk Arrays	ZFS Backup Appliance Oracle ZFS Storage ZS3-4, ZS3-BA
Tape Libraries	StorageTek Virtual Storage Manager 6

7051515

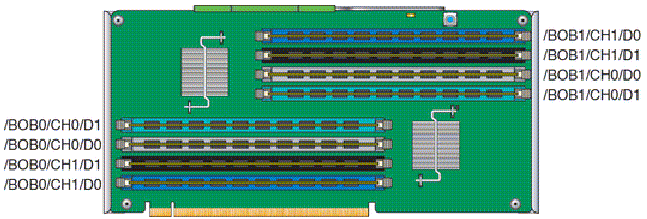

Memory Riser Board

Notes

Install DIMM Filler 330-4839 in all unused DIMM slots.
Riser 541-3819 replaced 541-4418 in the SPARC T3-2 in February 2011.

X4470 and X4470 M2 Installation Notes

Two, four, six, and eight DIMM configurations are supported.

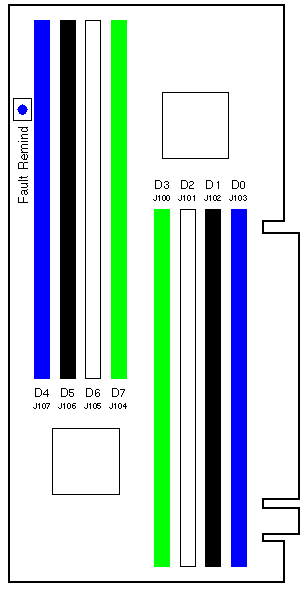

Install D0/D4 (blue), then D2/D6 (white), then D1/D5 (black), and then D3/D7 (green).

SPARC T3-2, SPARC T4-2, and Netra SPARC T4-2 Installation Notes

Install D0/D4 (blue) and D2/D6 (white) for a four DIMM configuration.
Install all DIMMS for an eight DIMM configuration.
Two DIMM configurations shown on the service label are not supported.
Two DIMM configurations are not supported.

Sun original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
