Sun V240 System Board, 2x1.5Ghz CPU, 0Mb.
Sun Part Number 375-3467.
Original Sun Product.
Sun Fire V210 / V240| Servers | Sun Fire V210, V240 |
375-3467
V240 only | 0MB FRU
2 × 1.503GHz US IIIi | R06 Motherboard Assy 375-3459
Fan/Heatsink 371-0837
Tomatillo 2.3 | September 2006 |

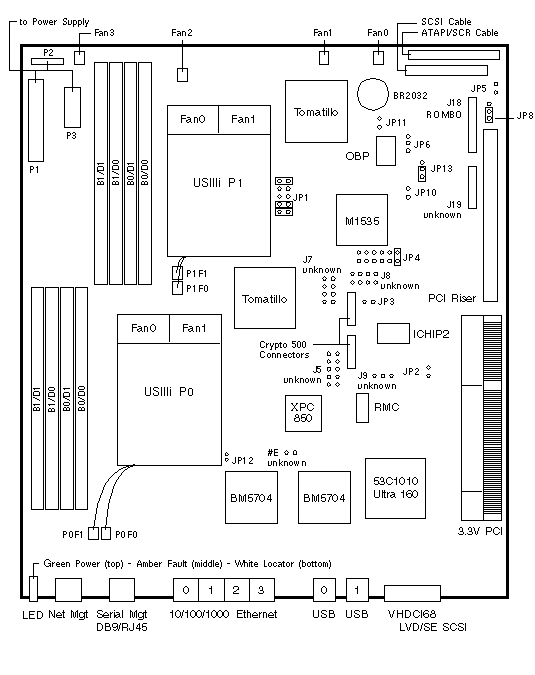

| LOCATION | PINS | SETTING | DESCRIPTION |
|---|
| JP1 | 1-2
3-4
9-10 | In
In
In | 1.4V Core VID[4:0] Bit 4 (00110)
1.4V Core VID[4:0] Bit 3 (00110)
1.4V Core VID[4:0] Bit 0 (00110) | | JP2 | 1-2
1-2 | Out
In | ALOM Flash Normal (default)
ALOM Flash Recovery | | JP3 | 1-2
1-2 | Out
In | ALOM Normal (default)
ALOM Reset | | JP4 | 1-2 | In | 1.002GHz CONFIG[2:0] Bit 0 (110) | 1-2
3-4 | In
In | 1.280GHz CONFIG[2:0] Bit 0 (100)
1.280GHz CONFIG[2:0] Bit 1 (100) | | 5-6 | In | 1.336GHz CONFIG[2:0] Bit 2 (011) | 1-2
5-6 | In
In | 1.503GHz CONFIG[2:0] Bit 0 (010)
1.503GHz CONFIG[2:0] Bit 2 (010) | | JP5 | 1-2
1-2 | Out
In | ATAPI Master - CSEL Open (default)
ATAPI Slave - CSEL Grounded | | JP6 | 1-2
2-3 | In/Out
In | OBP Flash Select (default)
ROMBO Select | | JP8 | 1-2
2-3 | In
In | Normal CMOS (default)
Clear CMOS | | JP10 | 1-2
1-2 | Out
In | Normal PS_ON# (default)
PS_ON# Override | | JP11 | 1-2
1-2 | Out
In | OBP Flash Write Enabled (default)
OBP Flash Write Protected | | JP12 | 1-2
1-2 | Out
In | ALOM Console Normal (default)
ALOM Console Bypass | | JP13 | 1-2
2-3 | In/Out
In | OBP Flash Normal (default)
OBP Flash Recovery |
Device Paths| PCI Card Slots: | 0 | 33/66MHz | /pci@1d,700000/<device>@1 | | 1 (V240 only) | 33MHz | /pci@1e,600000/<device>@3 | | 2 (V240 only) | 33MHz | /pci@1e,600000/<device>@2 | Onboard Gigabit
Ethernet Ports: | BGE0 | /pci@1f,700000/network@2 | | BGE1 | /pci@1f,700000/network@2,1 | | BGE2 | /pci@1d,700000/network@2 | | BGE3 | /pci@1d,700000/network@2,1 | Internal SCSI
Hard Drives: | Target 0 | /pci@1c,600000/scsi@2/sd@0 | | Target 1 | /pci@1c,600000/scsi@2/sd@1 | | Target 2 (V240 only) | /pci@1c,600000/scsi@2/sd@2 | | Target 3 (V240 only) | /pci@1c,600000/scsi@2/sd@3 | | External SCSI Port: | /pci@1c,600000/scsi@2,1 | | IDE Controller (for DVD-ROM): | /pci@1e,600000/ide@d | | USB Controller: | /pci@1e,600000/usb@a | | Serial Port Controller: | /pci@1e,600000/serial@0 | | Environmental Bus (I2C): | /pci@1e,600000/i2c@0 | | System/ALOM Comm: | /pci@1e,600000/isa@7/rmc-comm@0 |
Sun original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
|
