Sun 501-7723 X4440 System Board with 2 x 2.3Ghz CPU's
Sun 501-7723 X4440 System Board with 2 x 2.3Ghz CPU's
Sun
original product. Product in stock, available immediately.
Our Price:
£
100.00
Availability::
Usually Ships in 24 Hours
Product Code:
501-7723
Qty:
Description
Technical Specs
Extended Information
Sun X4440 System Board with 2 x 2.3Ghz CPU's.
Sun
Part Number
501-7723
.
Original
Sun
Product.

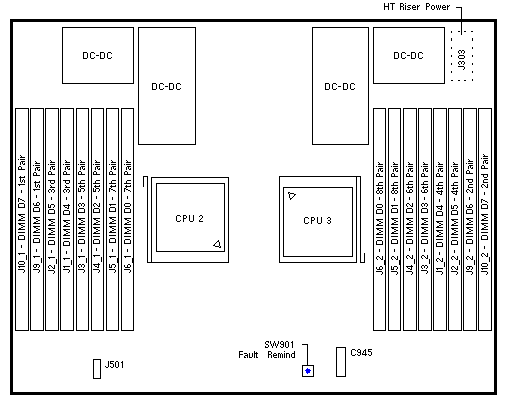

CPU/Memory Mezzanine Assembly
501-7723
Mezzanine Board
January 2008
Mezzanine Notes
Three 541-2906 HyperTransport Risers are required on the System Board.
Replace Air Duct 330-4433 with Air Duct 330-4644 when the Mezzanine is used.
The Mezzanine FRU includes Air Duct 330-4622, Tray 541-2769,
two 250-1802 Cleaning Wipes, and two 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
The Mezzanine FRU is not labeled with the FRU part number.
501-7723 / 540-7597 only supports HyperTransport Version 2.0.
511-1395 includes capacitor changes to support HyperTransport Version 3.0.
Options X6314A, X6315A, X6317A, and X6342A Notes
Heatsink 310-0128 includes two Screws and two Springs with no part numbers.
Heatsink 310-0128 is pre-greased with Shin-Etsu G751.
Option X6338A and X6339A Notes
Heatsink 310-0180 includes two Screws and two Springs with no part numbers.
Heatsink 310-0180 is pre-greased with Shin-Etsu X23-7783D.
Memory Notes
Install memory in matched pairs.
Memory FRUs include two matched DIMMs.
Install Memory Filler 371-3651 in all unused slots.
DIMMs are labeled with the manufacturing part number.
DIMMs are not labeled with the FRU part number.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
