Sun 511-1098 X6270 RAID I/O Expansion Module
Sun 511-1098 X6270 RAID I/O Expansion Module
Sun
original product. Product in stock, available immediately.
Our Price:
£
380.00
Availability::
Usually Ships in 24 Hours
Product Code:
511-1098
Qty:
Description
Technical Specs
Extended Information

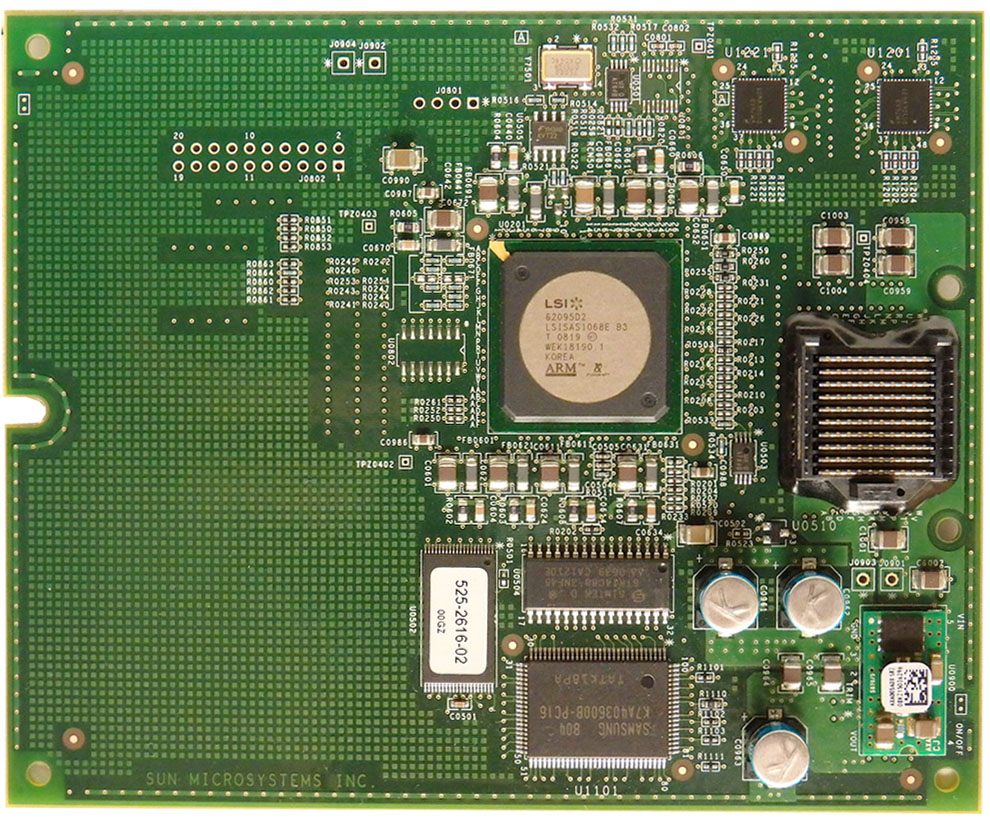

Sun X6270 RAID I/O Expansion Module.
Sun
Part Number
511-1098
.
Original
Sun
Product.
RAID Expansion Module
Servers
Sun Blade X6240, X6270
Sun Blade X6440, X6450
511-1098
REM
Notes
Sun Blade X6450-AA 540-7595 is not supported. Sun Blade X6450-AB 540-7821 is required.
Onboard SAS/SATA Notes
T6320 requires REM X4601A or X4607A for onboard SAS connectivity.
T6340, X6240, and X6270 require REM X4607A for onboard SAS connectivity.
X6240 and X6270 with REM X4607A is optional for onboard SATA RAID connectivity.
SAS Connectivity Matrix
System
Requires REM
for SAS
Connectivity
to NEM
Sun Blade T6320
X4601A or
X4607A
X4212A
X4601A or
X4607A
X4236A
X4601A or
X4607A or
SGX-SAS6-REM-Z
X4238
Sun Blade T6320+ (G2)
X4607A
X4212A
X4607A
X4236A
Sun Blade T6340
X4607A
X4212A
X4607A
X4236A
X4607A or
SGX-SAS6-REM-Z
X4238
Sun Blade X6240
X4607A or
X4620A
X4212A
X4607A or
X4620A
X4238
Sun Blade X6270
X4607A or
X4620A
X4212A
X4607A or
X4620A
X4238
Sun Blade X6440
X4607A or
X4620A
X4212A
X4607A or
X4620A
X4238
Sun Blade X6450
X4601A or
X4607A
X4212A
X4601A or
X4607A
X4236A
X4601A or
X4607A
X4238
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
