Sun 511-1200 1.2GHz 4-Core System Board
Sun 511-1200 1.2GHz 4-Core System Board
Sun
original product. Product in stock, available immediately.
Our Price:
£
395.00
Availability::
Usually Ships in 24 Hours
Product Code:
511-1200
Qty:
Description
Technical Specs
Extended Information
Sun 1.2GHz 4-Core System Board.
Sun
Part Number
511-1200
.
Original
Sun
Product.
SPARC Enterprise T5120 / T5220
System Board Assembly
511-1200
4-Core 1.2GHz
w/o Tray 541-1991

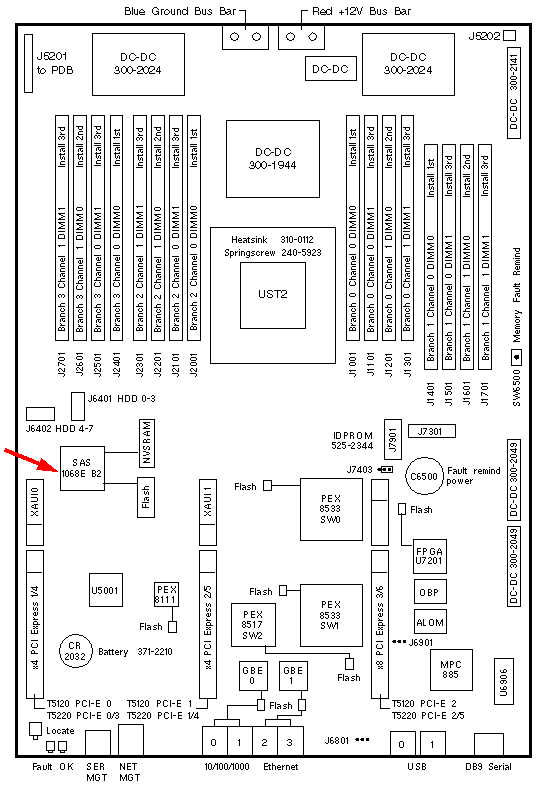

System Board with SAS 1068E B2 Controller
Headers, Jumpers, LEDs, and Switches
LOCATION
PINS
SETTING
DESCRIPTION
J5201
34
NA
To Power Distribution Board
J5202
10
NA
Unused Connector
J6401
36
NA
SAS HDD0-3
J6402
36
NA
SAS HDD4-7
J6801
3
Out
Unused MPC GPIO
J6901
1-2
2-3
In
Out
SSP Flash Select_7 (default)
SSP Flash Select_6 (default)
J7301
38
NA
FBGA Debug Connector
J7403
3
1-2
Unknown
SW5301
NA
NA
Locate Button
SW6500
NA
NA
Memory Fault Remind Button
Notes
The minimum operating system is Solaris 10 8/07.
Memory Notes
Four, eight, and sixteen FBDIMM configurations of the same FBDIMM are supported.
All FBDIMM's in a Branch must have the same Sun part number.
All FBDIMM's in the server must be the same capacity.
The minimum requirement is four FBDIMMs in the Channel 0, DIMM 0 slots.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
