Sun 540-7381 System Board Assy, ROHS
Sun 540-7381 System Board Assy, ROHS
Sun
original product. Product in stock, available immediately.
Our Price:
£
795.00
Availability::
Usually Ships in 24 Hours
Product Code:
540-7381
Qty:
Description
Technical Specs
Extended Information
Sun System Board Assy, ROHS.
Sun
Part Number
540-7381
.
Original
Sun
Product.
Sun Fire X4450
540-7381
Assembly/FRU
System Board + Tray

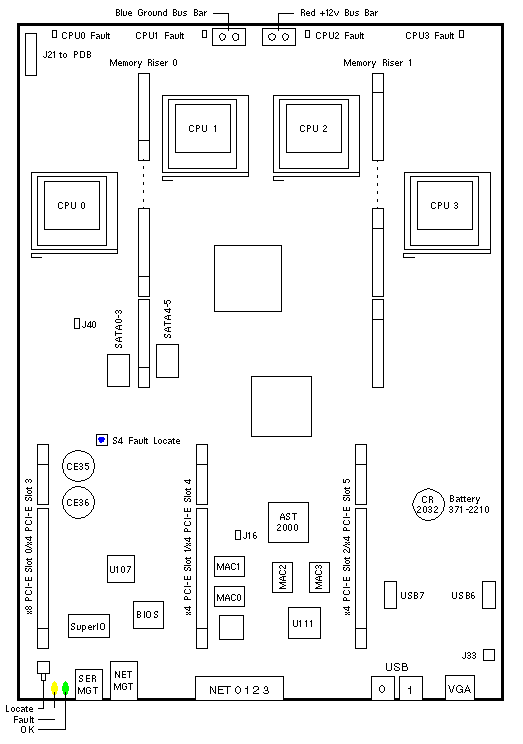

Jumpers
LOCATION
PINS
SETTING
DESCRIPTION
J33
1-3
2-4
In
In
Clear NVRAM (temporary setting)
Clear Password (temporary setting)
J16
1-2
Out
BMC Disable (default)
J40
1-2
Out
Unknown
Notes
The minimum Solaris operating system is Solaris 10 8/07.
System Board 375-3510 details are not available in a Bill of Materials.
Heatsink 310-0160 is pregreased with Shin-Etsu X23-7783D.
The System Board FRU includes a mounting tray, four 250-1802 Cleaning Wipes, and four 310-0065 Thermal Grease Syringes.
A two-CPU configuration utilizes CPU0 and CPU1.
Firmware Notes
MAXII CPLD code at U107 does not have a Sun part number.
BIOS code at U44 does not have a Sun part number.
System Board 540-7381-01 with ELOM changed to 540-7381-02 with ILOM in August 2008.
Memory Notes
Install memory in matched pairs.
Memory FRUs include two matched DIMMs.
Sun Fire X4450 DIMMs are not labeled with the FRU part number.
Install the largest capacity memory in the lowest numbered slots.
Install the first DIMM pair in slots A0/B0. Install the second pair in slots C0/D0.
Install additional memory in slots A1/B1, C1/D1, A2/B2, C2/D2, A3/B3, C3/D3, A4/B4, C4/D4, A5/B5, C5/D5, A6/B6, C6/D6, A7/B7, and C7/D7.
A 3mm allen wrench is required to remove the Memory Riser cap-head screws.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
