Sun 540-7969 8-Core 1.4Ghz System Board
Sun 540-7969 8-Core 1.4Ghz System Board
Sun
original product. Product in stock, available immediately.
Our Price:
£
125.00
Availability::
Usually Ships in 24 Hours
Product Code:
540-7969
Qty:
Description
Technical Specs
Extended Information
Sun 8-Core 1.4Ghz System Board.
Sun
Part Number
540-7969
.
Original
Sun
Product.
System Board Assembly
540-7969
8-Core 1.4GHz FRU
511-1414 + 541-1991

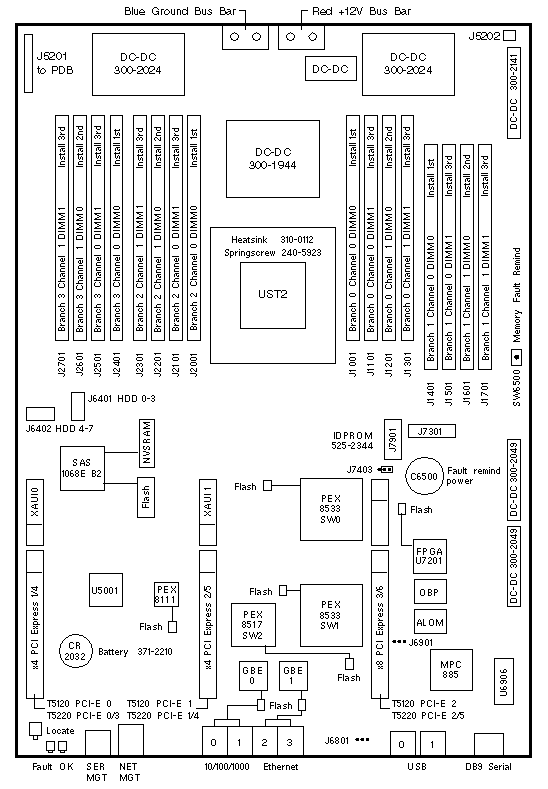

Connectors and Jumpers
LOCATION
PINS
SETTING
DESCRIPTION
J5201
34
n/a
To Power Distribution Board
J5202
10
n/a
Unused Connector
J6401
36
n/a
SAS HDD0-3
J6402
36
n/a
SAS HDD4-7
J6801
3
Out
Unused MPC GPIO
J6901
1-2
2-3
In
Out
SSP Flash Select_7 (default)
SSP Flash Select_6 (default)
J7301
38
n/a
FBGA Debug Connector
J7403
3
1-2
Unknown
SW5301
n/a
n/a
Locate Button
SW6500
n/a
n/a
Memory Fault Remind Button
Notes
The minimum operating system is Solaris 10 8/07.
The minimum System Firmware for 1.6GHz system boards is 7.2.2.e.
Memory Notes
Four, eight, and sixteen FBDIMM configurations of the same FBDIMM are supported.
All FBDIMM's in a Branch must have the same Sun part number.
All FBDIMM's in the server must be the same capacity.
The minimum requirement is four FBDIMMs in the Channel 0, DIMM 0 slots.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
