Sun 541-2814 Netra T5220 8-Core 1.2Ghz System Board (NOB)
Sun 541-2814 Netra T5220 8-Core 1.2Ghz System Board (NOB)
Sun
original product. Product in stock, available immediately.
Our Price:
£
9,000.00
Availability::
Usually Ships in 24 Hours
Product Code:
541-2814
Qty:
Description
Technical Specs
Extended Information
Sun Netra T5220 8-Core 1.2Ghz System Board (NOB).
Sun
Part Number
541-2814
.
Original
Sun
Product.
Netra T5220
CPU/Memory Board
541-2814
8-Core 1.2GHz FRU
541-2813 + Firmware
541-2814-05 Rev 53
8-Core 1.2GHz FRU
541-2813-07 + Netra T5220 ILOM

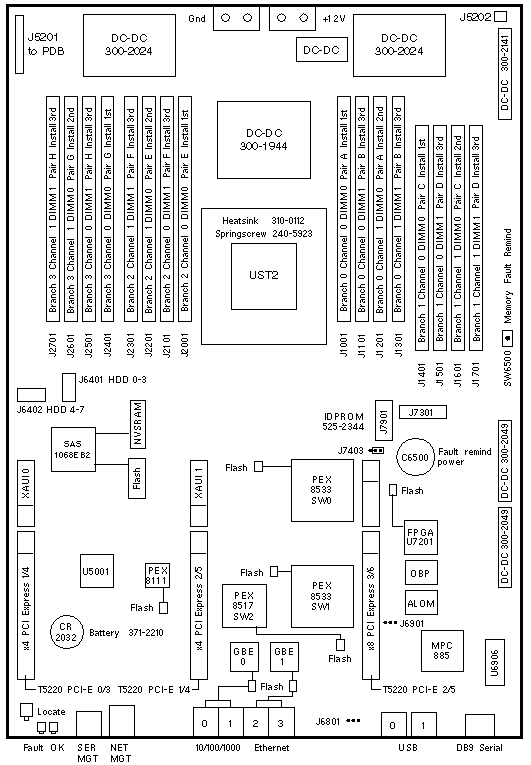

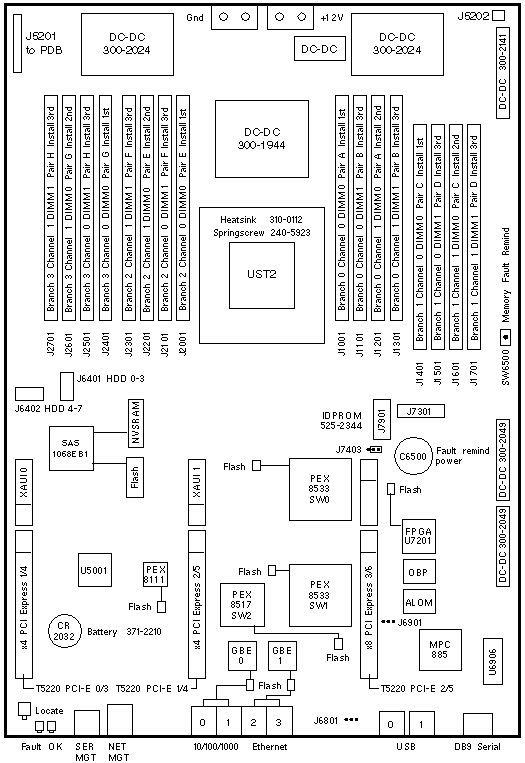

Headers, Jumpers, LEDs, and Switches
LOCATION
PINS
SETTING
DESCRIPTION
J5201
34
NA
To Power Distribution Board
J5202
10
NA
Unused Connector
J6401
36
NA
SAS HDD0-3
J6402
36
NA
SAS HDD4-7
J6801
3
Out
Unused MPC GPIO
J6901
1-2
Out
In
Normal Flash (default)
Flash Recovery
J7301
38
NA
FBGA Debug Connector
J7403
3
1-2
Unknown
SW5301
NA
NA
Locate Button
SW6500
NA
NA
Memory Fault Remind Button
Notes
The minimum operating system is Solaris 10 8/07.
System Board 511-1087 replaced 501-7781 in December 2008.
System Board 511-1200 replaced 501-7814 in December 2008.
Assembly 540-7992 is a new part number for 541-2814-05 Rev 53.
Assembly 540-7994 is a new part number for 541-2867-05 Rev 53.
Assemblies 540-7992 and 540-7994 were released in April 2009.
Memory Notes
Four, eight, and sixteen FBDIMM configurations are supported.
All FBDIMM's in a Branch must have the same Sun part number.
The minimum requirement is four FBDIMMs in the Channel 0, DIMM 0 slots.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
