Flash Accelerator F20

541-3731
96GB Memory
XTA-FAS-S3IE96GB

Notes

1. The minimum Solaris operating system is Solaris 10 5/09.
2. The x-option includes Low Profile Bracket 341-5571 installed.
3. The x-option includes Standard Profile Bracket 341-5730 in the box.
4. F511-1275 does not include Capacitor Cover 330-5057 or ESM 371-4650.
5. F511-1500 does not include Capacitor Cover 330-5057 or ESM 371-4650.
6. 511-1275 was released in September 2009.
   511-1500 was released in November 2009.
7. Customer Intensive Care Kit 555-1960 was released in January 2010.
8. SPARC Enterprise M4000/M5000/M8000/M9000 requires Firmware XCP 1102.
9. See Product Notes for important information on the use of one of the two ESM (Energy Storage Module) Monitoring Utilities to determine when to replace the ESM.
   The ILOM ESM Monitoring Option described in the Product Notes requires Firmware 7.2.7.d
   (otherwise the minimum Firmware requirement is 7.2.4.e).

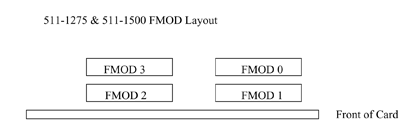

10. See FMODs available for the F20 card.
