Sun 542-0141 Blade X6240 Server
Sun 542-0141 Blade X6240 Server
Sun
original product. Product in stock, available immediately.
Our Price:
£
400.00
Availability::
Usually Ships in 24 Hours
Product Code:
542-0141
Qty:
Description
Technical Specs
Extended Information
Sun Blade X6240 Server.
Sun
Part Number
542-0141
.
Original
Sun
Product.
542-0141
Assembly/FRU
375-3624 + Enclosure

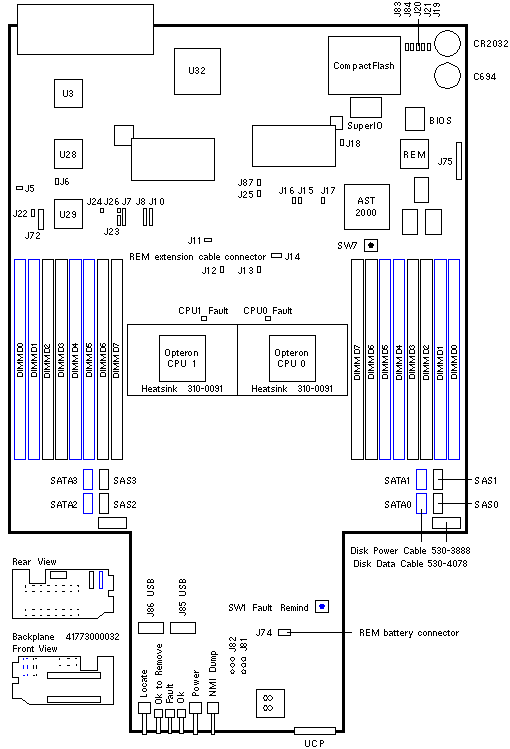

Headers and Jumpers
LOCATION
PINS
SETTING
DESCRIPTION
J5 J6
2
Out
Not documented
J7 J8 J10
6
Out
Not documented
J11 J12 J13
2
Out
Not documented
J15
3
Out
I2C 2nd Bus
J16
1-2
In
Normal CMOS (2-3 = Clear CMOS)
J17
3
Out
I2C Main Bus
J18
3
Out
Not documented
J19
2-3
In
Normal Password (1-2 = Clear SP Password)
J20
1-2
Out
Write Protect (default)
J21
2-3
In
Enable ARM (1-2 = Disable ARM)
J22
2-3
In
Program by ILOM (default)
J23
4
Out
Not documented
J24 J25
2
Out
Not documented
J26
2
n/a
Not documented (not stuffed)
J72
16
n/a
Power Debug Header
J75
20
n/a
BMC JTAG Header
J81
1-2
In
Normal (default)
J82
2-3
In
Normal (default)
J83
1-2
Out
SP Manfacturing Mode (default)
J84
1-2
Out
SP TRST (default)
J87
2
Out
Not documented
SW1
n/a
n/a
CPU and DIMM Fault Locate Button
SW7
n/a
n/a
Not documented
Notes
The minimum Solaris operating system is Solaris 10 5/08.
X6240-AB is required to support AMD 6-core Opteron 2400 series processors.
System Board 542-0141 supports 8GB DIMMs and utilizes cHT3 (Coherent HyperTransport 3.0) technology.
Press Fault Locate button SW1 to illuminate the CPU and DIMM fault LEDs.
The CRU/FRUs includes Disk Backplanes, Cables, System Board, Enclosure, and Cover.
The CRU/FRUs does not include CPUs, Disks, Heatsinks, or Memory.
Thermal Grease 310-0065 is included with the Heatsink and System Board FRUs.
Heatsink 310-0091 is pre-greased with ShinEtsu G751 (310-0049).
Install DIMMs in D0/D1, then D2/D3, D4/D5, and D6/D7.
Chassis Notes
The X6240 is supported in Sun Blade 6000 A90-A, A90-B, and Sun Blade 6048.
The X6240 is not supported in Sun Blade 6000 A90-D.
Disk Backplane Notes
The 2-Slot Disk Backplane has no part number and is not available as a FRU.
There is no Disk Backplane cable kit for the Sun Blade X6240.
Use the system board SAS connectors for SAS/SATA/SSD drives connected to any REM.
Use the system board SATA connectors for SATA/SSD drives connected without a REM.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
