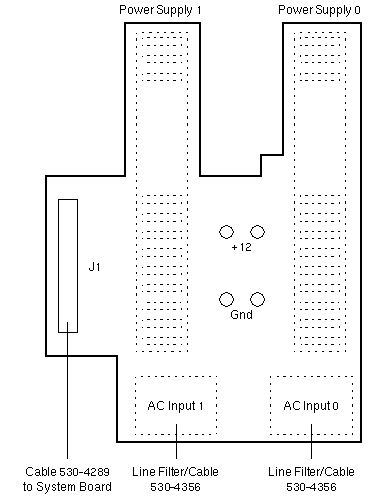

DC Power Distribution Board / Power Supply Backplane

7052430
PDB
FAB 7022193

Notes

1. Tabs on the top and bottom of the snap-in Delta 3GENW3ES/-R AC Line Filter prevent removal of cable 530-4356 from the chassis.
2. Remove Air Divider 350-1406, 7052037, or 7093647, PDB Cover 350-1469 or 7068043,
   the System Board and both Power Supplies before removing the PDB.
3. The difference between 7052431 and 7300803 is mounting washers and nuts.
4. The difference between 7300803 and 7317314 is HiPot testing and labeling.
