Power Supplies
>
Sun 7060590 Type A251 5740 Watt AC Input Power Supply
Sun 7060590 Type A251 5740 Watt AC Input Power Supply
Sun
original product. Product in stock, available immediately.
Our Price:
£
850.00
Availability::
Usually Ships in 24 Hours
Product Code:
7060590
Qty:
Description
Technical Specs
Extended Information
Sun Type A251 5740 Watt AC Input Power Supply.
Sun
Part Number
7060590
.
Original
Sun
Product.
Delta A251
5740 Watt Power Supply
Servers
Oracle Network Applications Platform
7060590
A251A AC Input Power Supply
Fan Tray 371-4653
Specification 950-5900
Drawing 386-5358
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition

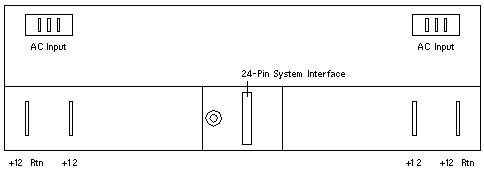

Front View
Rear View
AC Input
AC Input 1
200-240Vac
50-60Hz
16.0A
AC Input 2
200-240Vac
50-60Hz
16.0A
DC Output
A
B
C
+12.3V
+12.3V
+3.3V
240A
240A
12.0A
Notes
The Power Supply weighs 9.5 Kilograms (21 Pounds).
Power Supply Fan Tray 371-4653 is installed in the front of 300-2259.
Fan Trays 371-2138, 371-4208, and 371-4653 are not mechanically interchangeable.
Maximum continuous output is 5740 Watts.
PSU 7336465 does not include the CE, BG, EAC, or KC Compliance Marks and will not be structured to any system build.
Compliance Marks expired in June 2016.
PSU 7336465 can not be used in the European Union, Germany, Russia, Belarus, Kazakhstan, or South Korea.
PSU 7336465 was not added to Engineering Specification 7084313.
PSU 7336465 was not released for use in the Sun Blade 6000.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
