Sun 7071038 System Board Assy incl. 7051520 and Tray
Larger Photo
Email A Friend
Sun 7071038 System Board Assy incl. 7051520 and Tray.
0
Reviews
Sun
original product. Product in stock, available immediately.
Our Price:
£
450.00
Availability::
Usually Ships in 24 Hours
Product Code:
7071038
Qty:
minus
plus
Description
Technical Specs
Extended Information
Sun System Board Assy incl. 7051520 and Tray..
Sun
Part Number
7071038
.
Original
Sun
Product.
Servers
Sun Server X2-4
Oracle Exalytics In-Memory Machine X2-4, X3-4
Disk Arrays
ZFS Backup Appliance
Oracle ZFS Storage ZS3-4, ZS3-BA
7071038
Assembly/FRU
7071037 +
Rear I/O Board
7051520
Tray 341-5567

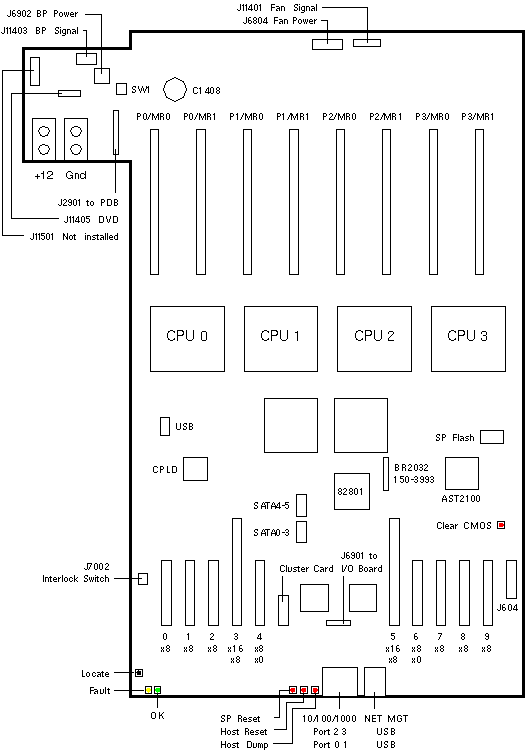

Headers, Jumpers, LEDs, and Switches
LOCATION
PINS
SETTING
DESCRIPTION
J1
1-2
Out
Disable MP
J3
1-2
Out
Not Documented
J17
1-2
Out
MFG
J28
1-3
Out
BIOS REC
J39
1-3
Out
Not Documented
J40
1-3
Out
DESC Override
J602
1-2
Out
Not Documented
J603
1-2
Out
SP Debug
J702
1-2
Out
Not Documented
J705
1-2
Out
FLA1
J706
1-2
Out
FLA0
J901
1-3
Out
Not Documented
J1302
1-2
Out
SP Write Protect
J4449
1-2
Out
Not Documented
J12101
1-2
In or Out
IMON Slope Hi
Jumper locations are not illustrated. The default setting is listed.
Notes
The minimum Solaris operating system is Solaris 10 09/10.
In a two CPU configuration, install P0 and P2 and install fillers in P1 and P3.
A two CPU configuration will operate at low-line, 100-127Volt, AC input.
A four CPU configuration requires high-line, 200-240Volt, AC input.
Thermal Grease Notes
The System Board FRU includes four 250-1802 Cleaning Wipes, and four
310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
Heatsink FRU F310-0228 includes Heatsink 310-0228, one 250-1802 Cleaning Wipe
and one 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringe. The Heatsink is
pre-greased with Shin-Etsu G751 or X23-7783D.
PCI Express Notes
PCI Express Slots 3 and 4 have 16 shared lanes available. If an x8 card is installed
in Slot 3, Slot 4 has eight lanes available. If an x16 card is installed in Slot 3, no card
will operate in Slot 4.
PCI Express Slots 5 and 6 have 16 shared lanes available. If an x8 card is installed
in Slot 5, Slot 6 has eight lanes available. If an x16 card is installed in Slot 5, no card
will operate in Slot 6.
HBA 375-3640 is supported in Slot 2 only.
HBA 375-3644 is supported in Slot 4 only. Use as an internal HBA is not supported.
Refer to X4470 Product Notes for additional card and slot restrictions.
