Sun Blade 501-7918 X6270 System Board
Larger Photo Email A Friend

Sun Blade 501-7918 X6270 System Board

0 Reviews

Sun original product. Product in stock, available immediately.

Our Price: £1,595.00

Availability:: Usually Ships in 24 Hours
Product Code: 501-7918

Qty:

Description

Technical Specs

Extended Information

Sun Blade X6270 System Board.
Sun Part Number 501-7918.
Original Sun Product.

Sun Blade X6270

501-7918
System Board

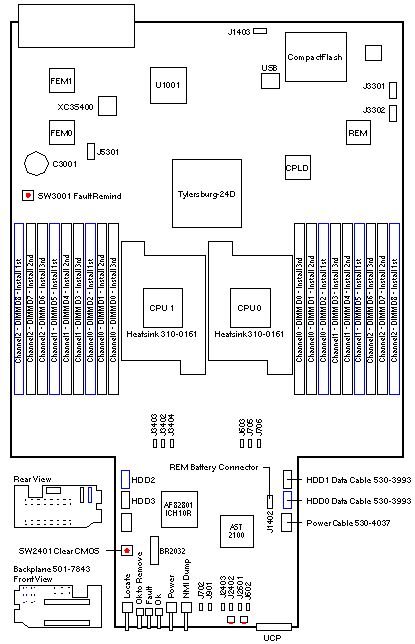

LOCATION	PINS	SETTING	DESCRIPTION
J602	1-2	Out	Not documented
J603	1-2	Out	Not documented
J702	1-2	Out	Not documented
J705	1-2	Out	Not documented
J706	1-2	Out	Not documented
J901	1-3	Out	Not documented
J2402	1-2	In	Not documented
J2403	1-2	In	Not documented
J3402	1-3	Out	Not documented
J3403	1-3	Out	Not documented
J3404	1-3	Out	Not documented
J2601	2	Out	Unknown Header
J1402	5	n/a	Unknown Header
J1403	5	n/a	REM Card
J3301	10	n/a	CPLD Program Header
J3302	10	n/a	CPLD Debug Header
J5301	14	n/a	Unknown Header
SW2401	n/a	n/a	Clear CMOS Button
SW3001	n/a	n/a	Fault Remind Button
SW4601	n/a	n/a	Unknown Button
SW4602	n/a	n/a	Unknown Button

The minimum Solaris operating system is Solaris 10 10/08.
Heatsink FRU 541-2545 includes Heatsink 310-0161, two 240-6751 SpringScrews, one 250-1802 Cleaning Wipe and one 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringe. Heatsink 310-0161 is pre-greased with Shin-Etsu G751.
The System Board FRU includes two 250-1802 Cleaning Wipes, and two 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.

The X6270 is supported in Sun Blade 6000 A90-A and A90-B, and in Sun Blade 6048.
The X6270 is not supported in Sun Blade 6000 A90-D.

Install memory filler panel 350-1288 in all unused slots.
Install the first three DIMMs in CPU0 and CPU1 slots D8, D5, and D2.
Install the second three DIMMs in CPU0 and CPU1 slots D7, D4, and D1.
Maximum speed is 1333MHz when 1333MHz DIMMs are installed in D8, D5, and D2.
Maximum speed is 1066MHz when two DIMMs of any speed are installed per channel.
Maximum speed is 800MHz when three DIMMs of any speed are installed per channel.
Use of the same DIMM size and speed is recommended for maximum performance.
