Sun Fire 501-7224 V490 Centerplane, RoHS:YL
Larger Photo
Email A Friend
Sun Fire 501-7224 V490 Centerplane, RoHS:YL
0
Reviews
Sun
original product. Product in stock, available immediately.
Our Price:
£
150.00
Availability::
Usually Ships in 24 Hours
Product Code:
501-7224
Qty:
minus
plus
Description
Technical Specs
Extended Information
Sun Fire V490 Centerplane, RoHS:YL.
Sun
Part Number
501-7224
.
Original
Sun
Product.

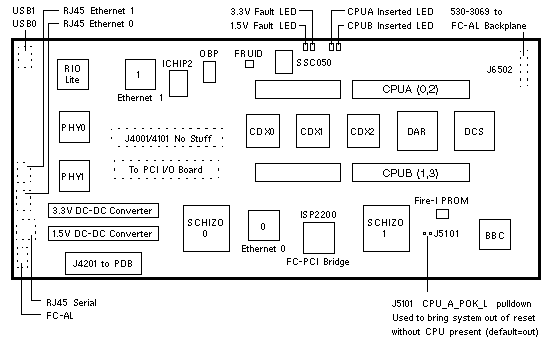

Sun Fire V490
Centerplane
A52
Servers
Sun Fire V490
501-7224
March 2006
FAB 270-5819-07
SCHIZO 2.5 or ELE 1.1+
>=525-2190-02 OBP 4.18.1
Schizo Data Address Mappings
Schizo
Bus
#
Device
Device Path
Speed
0
EPCI Bus A
(pci8a)
0
PCI Slot 0
pci@8,600000/<device>@1
66MHz
1
PCI Slot 1
pci@8,600000/<device>@2
66MHz
PCI Bus B
(pci8b)
1
PCI Slot 2
pci@8,700000/<device>@2
33MHz
2
PCI Slot 3
pci@8,700000/<device>@3
33MHz
3
PCI Slot 4
pci@8,700000/<device>@4
33MHz
4
PCI Slot 5
pci@8,700000/<device>@5
33MHz
5
IDE
pci@8,700000/ide@6
33MHz
1
EPCI Bus C
(pci9a)
0
Cassini 1
pci@9,600000/network@1
66MHz
1
FCAL
pci@9,600000/SUNW,qlc@2
66MHz
PCI Bus D
(pci9b)
0
EBUS
pci@9,700000/ebus@1
33MHz
1
USB
pci@9,700000/usb@1,3
33MHz
2
Cassini 0
pci@9,700000/network@2
33MHz
Notes
The minimum operating system is Solaris 8 2/04 or Solaris 9 4/04.
The Centerplane provides motherboard functionality, including bridge control of the PCI and Safari busses, and EBus, Ethernet, FC-AL, and I
2
C controllers.
The 2.1GHz CPU requires 501-7703. No motherboard upgrade is available.
Sun Fire V490 base configuration V490-BASE-2100-Z includes 501-7703.
Component Notes
DC-DC Converter (3.3V) 300-1437 is not available as a FRU.
DC-DC Converter (1.5V) 300-1438 is not available as a FRU.
Ethernet controllers are Cassini+ or Cassini CR .2µm.
ELE 1.1+ became an alternate component for SCHIZO in August 2004.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
