System Boards
>
Sun Fire 541-1486 V1280/E2900 PCI-X I/O Board & Sys Controller
Larger Photo
Email A Friend
Sun Fire 541-1486 V1280/E2900 PCI-X I/O Board & Sys Controller
0
Reviews
Sun
original product. Product in stock, available immediately.
Our Price:
£
1,500.00
Availability::
Usually Ships in 24 Hours
Product Code:
541-1486
Qty:
minus
plus
Description
Technical Specs
Extended Information
Sun Fire V1280/E2900 PCI-X I/O Board & Sys Controller.
Sun
Part Number
541-1486
.
Original
Sun
Product.

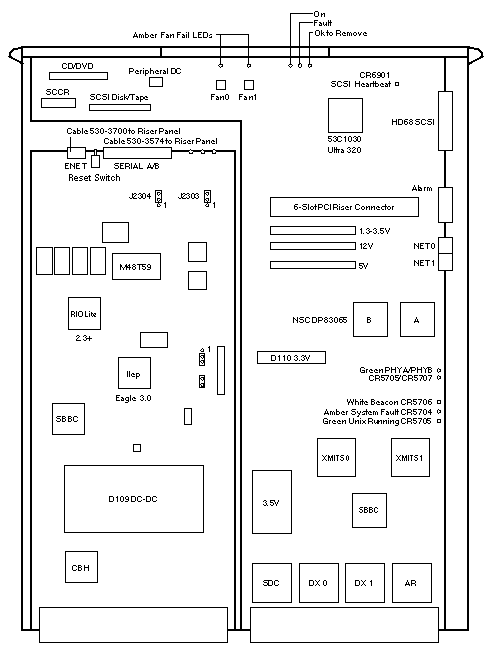

PCI-X I/O Board and System Controller (IB_SSC)
Servers
Sun Fire V1280
541-1486
IB_SSC Assembly/FRU

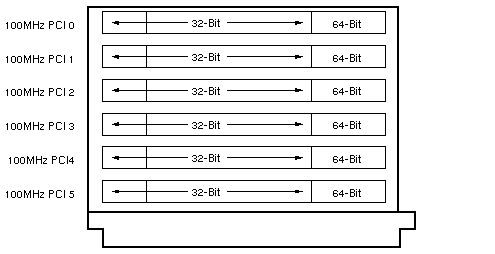

PCI-X Riser Assembly 541-1511 with PCI-X Riser 501-7542
PCI-X Device Mapping
For Physical Device Mapping, see Article 1003932.1
Physical device mapping for PCI-X I/O Boards (Sun Fire 4800, E4900, 6800, E6900) and
PCI-X IB_SSC (Sun Fire v1280, E2900 and Sun Netra 1280, 1290).
Notes
The minimum PCI-X operating system is Solaris 9 09/05 or Solaris 10 3/05 HW1.
The minimum Sun Fire V1280 and Sun Fire E2900 firmware is 5.20.1.
Refer to the
Install.info
file of any Firmware patch for information on firmware verification and compatibility.
Mechanical Notes
The I/O Board and System Controller slot is labeled IB6_SSC1.
The I/O Board and System Controller includes a toothed rack and the chassis includes clutched pinions in the front of slot IB6_SSC1.
Clutch grease changed from Reell 9236-001 to 695-018 (Krytox GPL 226) in February 2008.
Assembly Notes
Assembly 541-1486 includes Top Cover/Door 540-6817, I/O Board 501-7544, System Controller 501-7325, PCI Riser 501-7542, Dual Serial Cable 530-3574, Ethernet Cable 530-3700, Thermal Fuse Cable 530-3577, and two 540-6818 Fans.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
