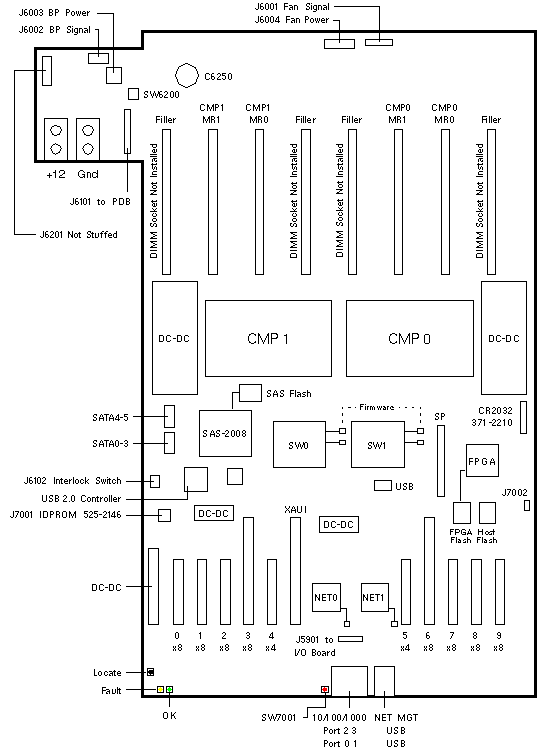

w/o UltraSPARC T4

Notes

1. The minimum operating system is Solaris 10 09/10 with the complete Solaris 10 08/11 bundle.
2. The D220 is located at U8001 and U8701.
3. Slots 0, 1, 2, 7, 8, and 9 PCI Express Channels are electrically eight lanes wide.
4. Slots 3 and 6 are sixteen lane connectors and are electrically eight lanes wide.
5. Slots 4 and 5 are eight lane connectors and are electrically four lanes wide.

Memory Installation Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the third four DIMMs in the black slots.
4. Install the last four DIMMs in the green slots.
5. All DIMMs installed in the server must have identical architecture, including identical capacity and rank classification. >See the SPARC T4-2 Server Documentation for additional DIMM population rules.
6. Install Dimm Filler 350-1288 in all unused DIMM slots.
7. Install Memory Riser Filler 330-5269 in all Filler Slots.

SGX-SAS6-R-INT-Z RAID HBA Notes

1. Install 375-3701 in Slot 0 only.
2. Installation of 375-3701 disables access to the front-panel DVD.
