7052205
7052204
DDR2-667/PC2-5300
2-Rank/1Gbit SDRAM
1.5V VDD/VDDQ

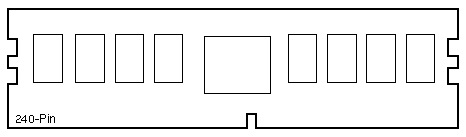

4GB Fully Buffered DIMM
4GB Assembly 7052205
No Option

T5140/T5240 Notes

1. Eight, twelve, and sixteen FBDIMM configurations are supported on the system board.
2. Eight and sixteen FBDIMM configurations are supported on the memory mezzanine.
3. The system board requires sixteen FBDIMMs before installing the memory mezzanine.
4. All FBDIMMs within a CMP must have the same memory size.
5. If Firmware is < 7.1.7.f, all FBDIMMs must have the same memory size.
6. Different size FBDIMMs on different CMPs are supported (i.e. FBDIMMs in CMP0 can have different memory size than those in CMP1) with Firmware 7.1.7.f and Firmware 7.2.2.e, but BugID 15587979 [SUNBT6879970] affects mixed memory configurations with Firmware 7.2.2.e,
7. Firmware 7.2.6 (Patch 139444-06) fixes BugID 15587979 [SUNBT6879970].
8. FBDIMMs within a Branch must have the same Sun part number.
   Exceptions:
   511-1151 and 7052193 can be mixed.
   511-1152 and 7052205 can be mixed.

9. Mixing 1.8V and 1.5V FBDIMMs is not supported.
10. Low Voltage 1.5V FBDIMMs require System Firmware 7.1.6.d.

Netra T5440 Notes

1. All FBDIMMs must have the same memory size.
2. FBDIMMs within a Branch must have the same Sun part number.
3. Mixing 1.8V and 1.5V FBDIMMs is not supported.
4. Low Voltage 1.5V FBDIMMs require System Firmware 7.1.6.g.
5. Memory Riser 501-7678 is only compatible with 1.8V VDD/VDDQ DIMMs.
6. Memory Riser 511-1231 is compatible with 1.5V and 1.8V VDD/VDDQ DIMMs.
